Product Features

Made in the U.S.A.

Style: Contemporary

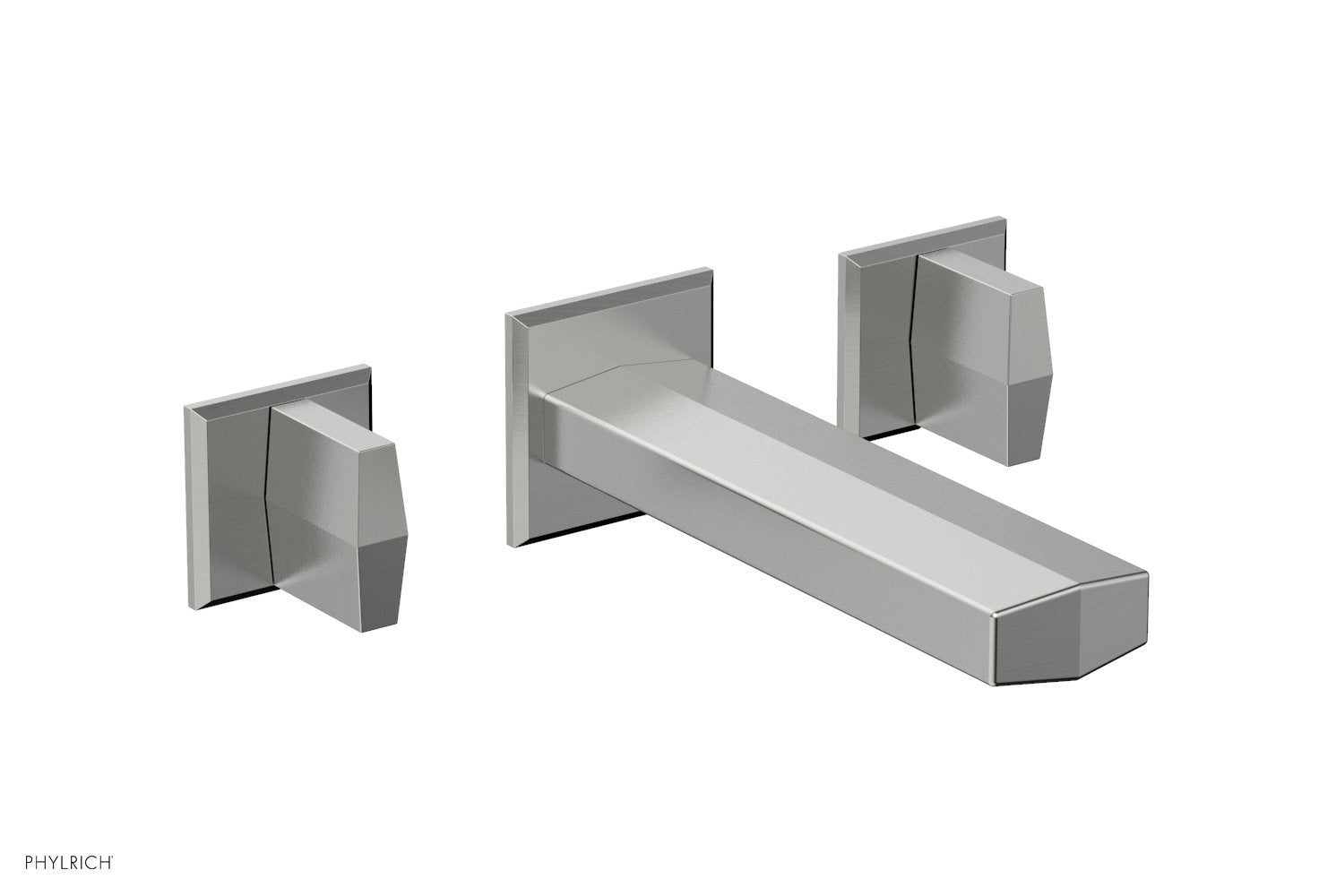

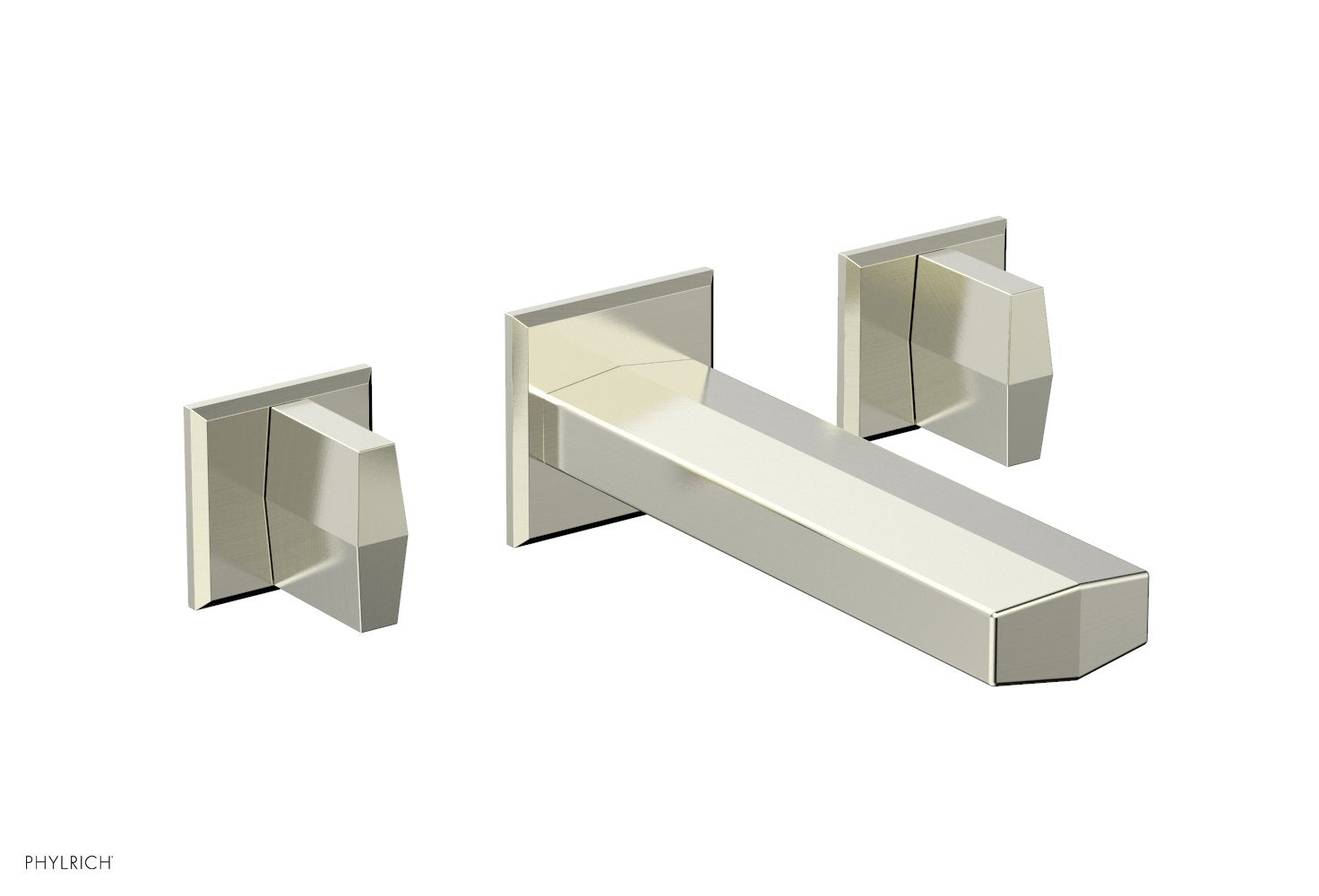

Collection: DIAMA
Temperature Controlled By Handles
Blade Handles
Required Valves:

Off Set from Handles - 8090536R
In-Line With Handles - 8090536RNL

Low lead compliant – complies with federal and state regulations for lead content

WARNING For California Residents - Prop 65

Technical Details

ADA Compliance: Yes
Fitting Hole Diameter: 1 1/8"
Number of Holes: Three Hole
Number of Handles: Two
Handle Turn Angle: Quarter Turn
Spout Reach: 8 3/4"
Installation Type: Wall Mounted
Primary Material: Brass
Valve Material: Ceramic
Flow Restriction: Full Flow
Water Pressure Maximum: 85 PSI
Water Pressure Minimum: 20 PSI
Water Pressure Recommended: 60 PSI

Codes & Standards

ASME A112.181/ CSA B1251, ASME 112.18.2/ CSA B125.2, ANSI NSF, CEC,
Watersense 61 Sect. 9, State of MA.

Warranty

Mechanical Warranty: 10 Years from date of purchase.
Finish Warranty: See Warranty information page for further information.
