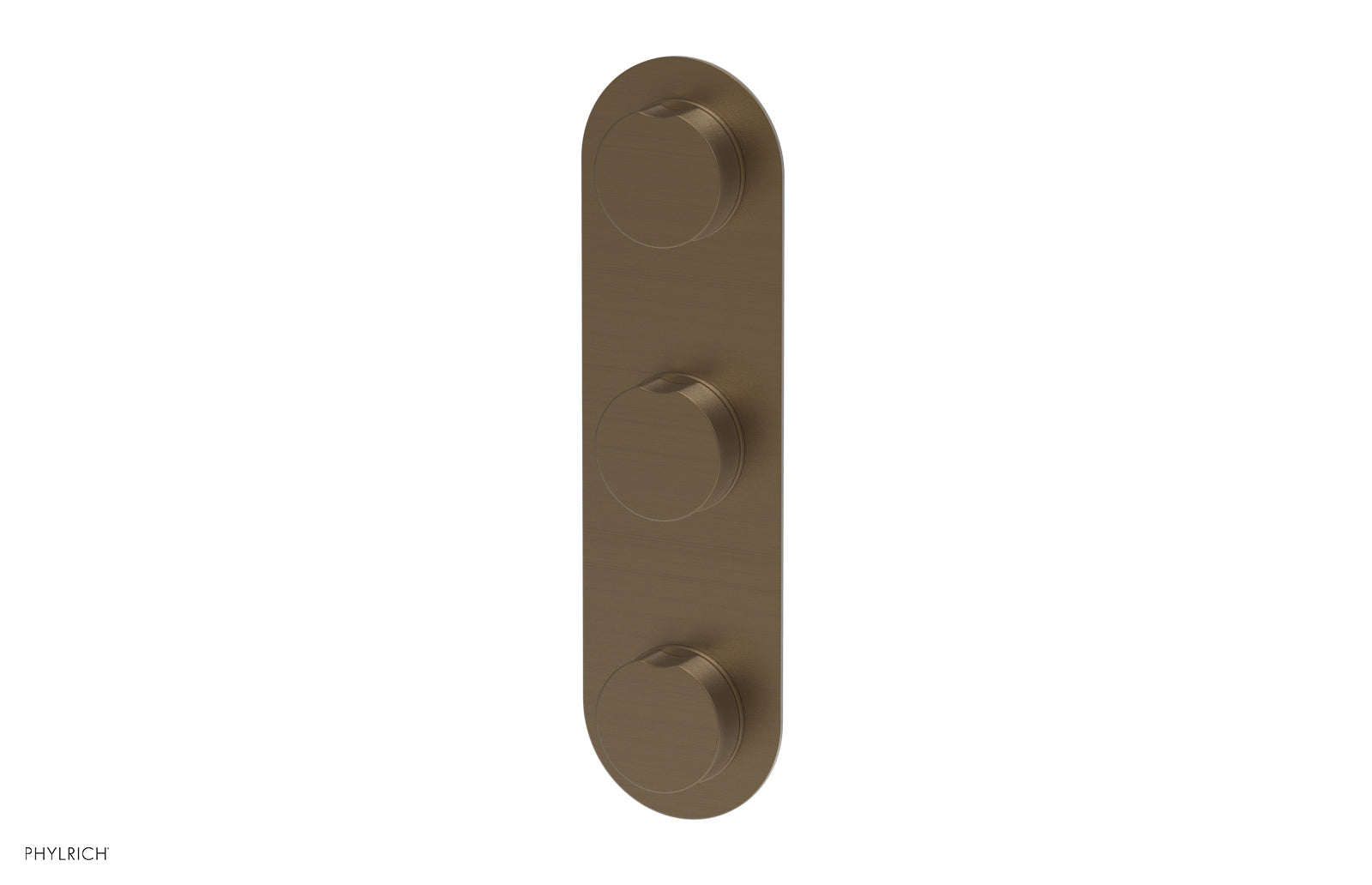

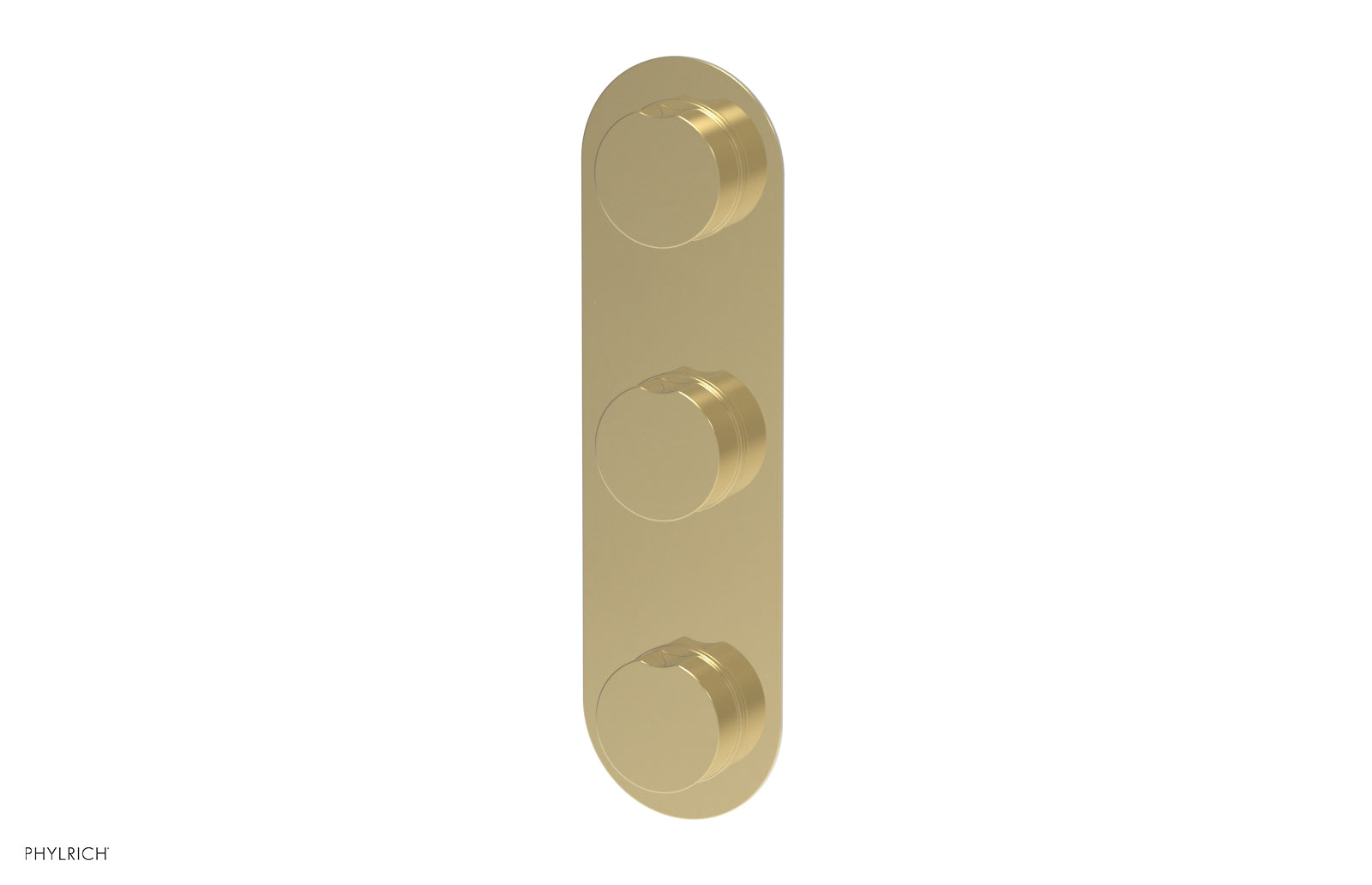

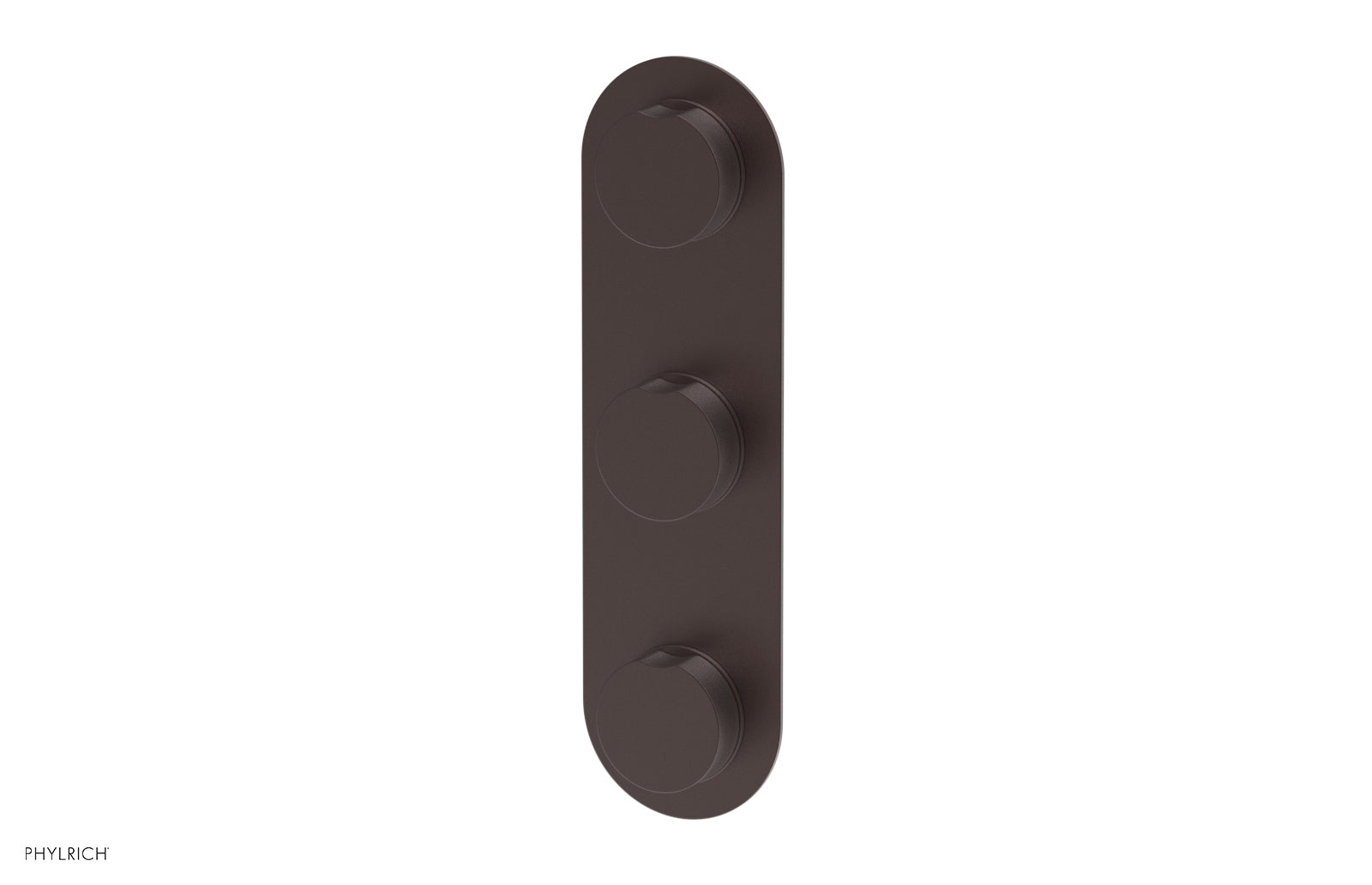

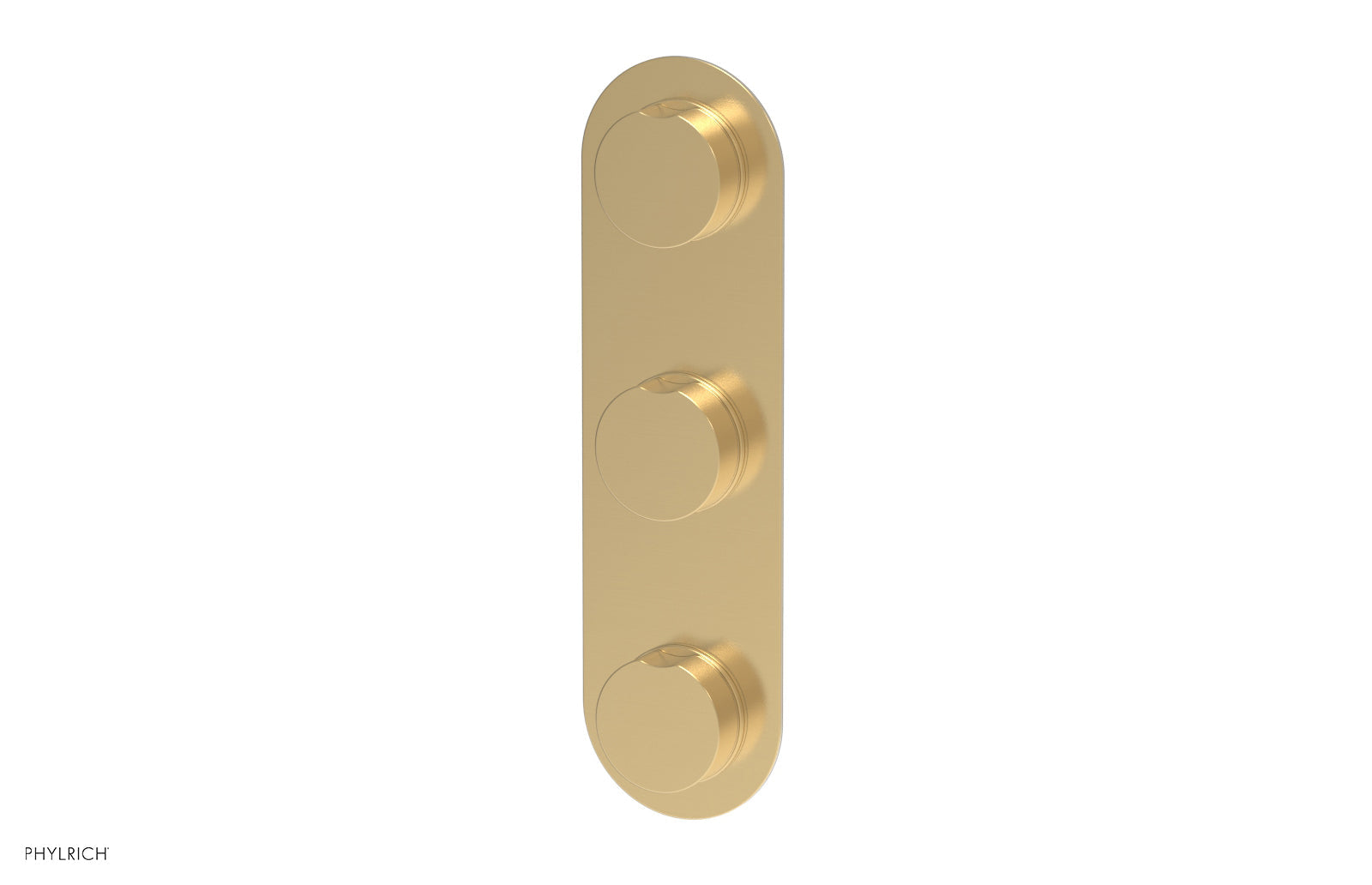

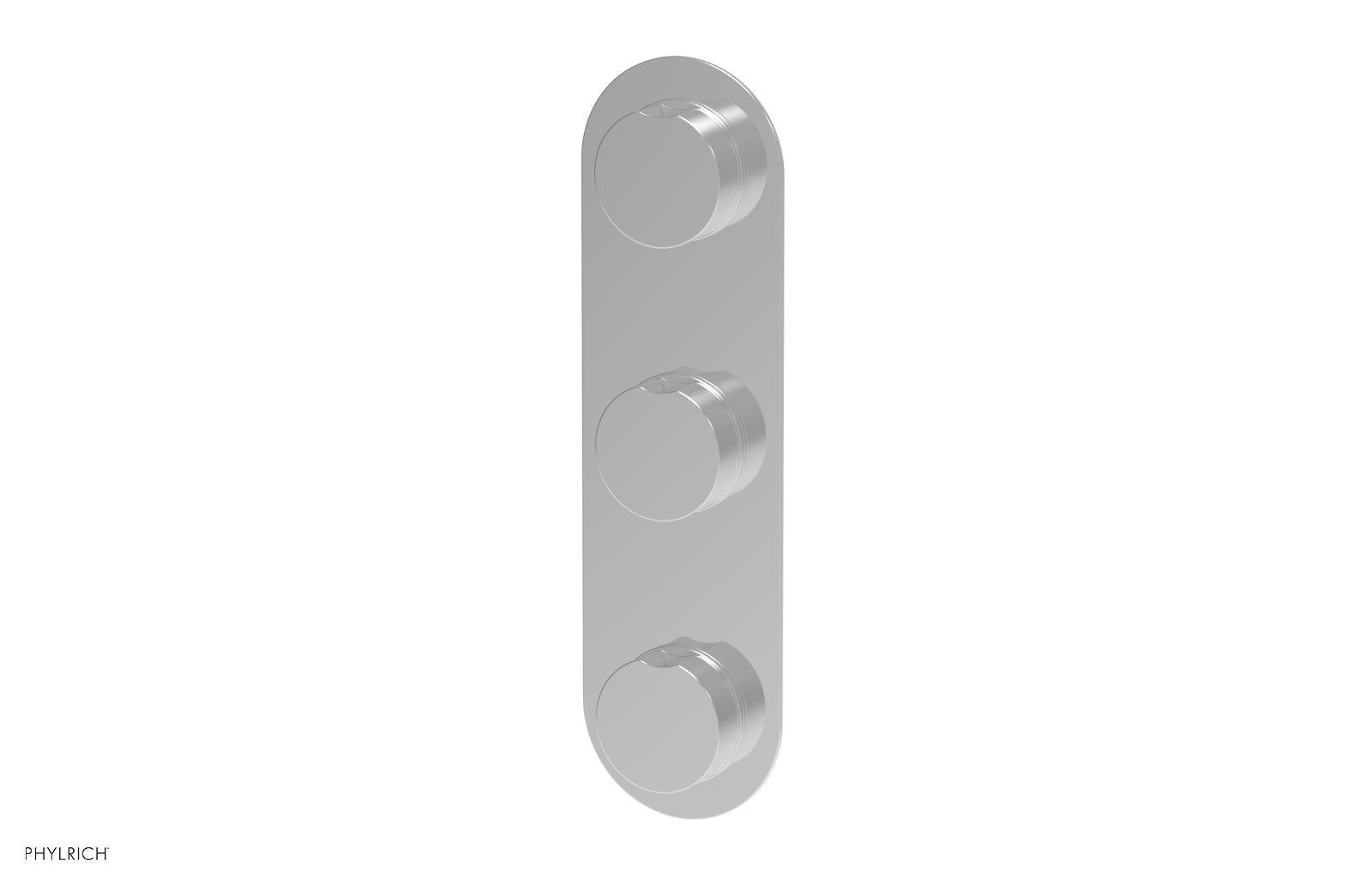

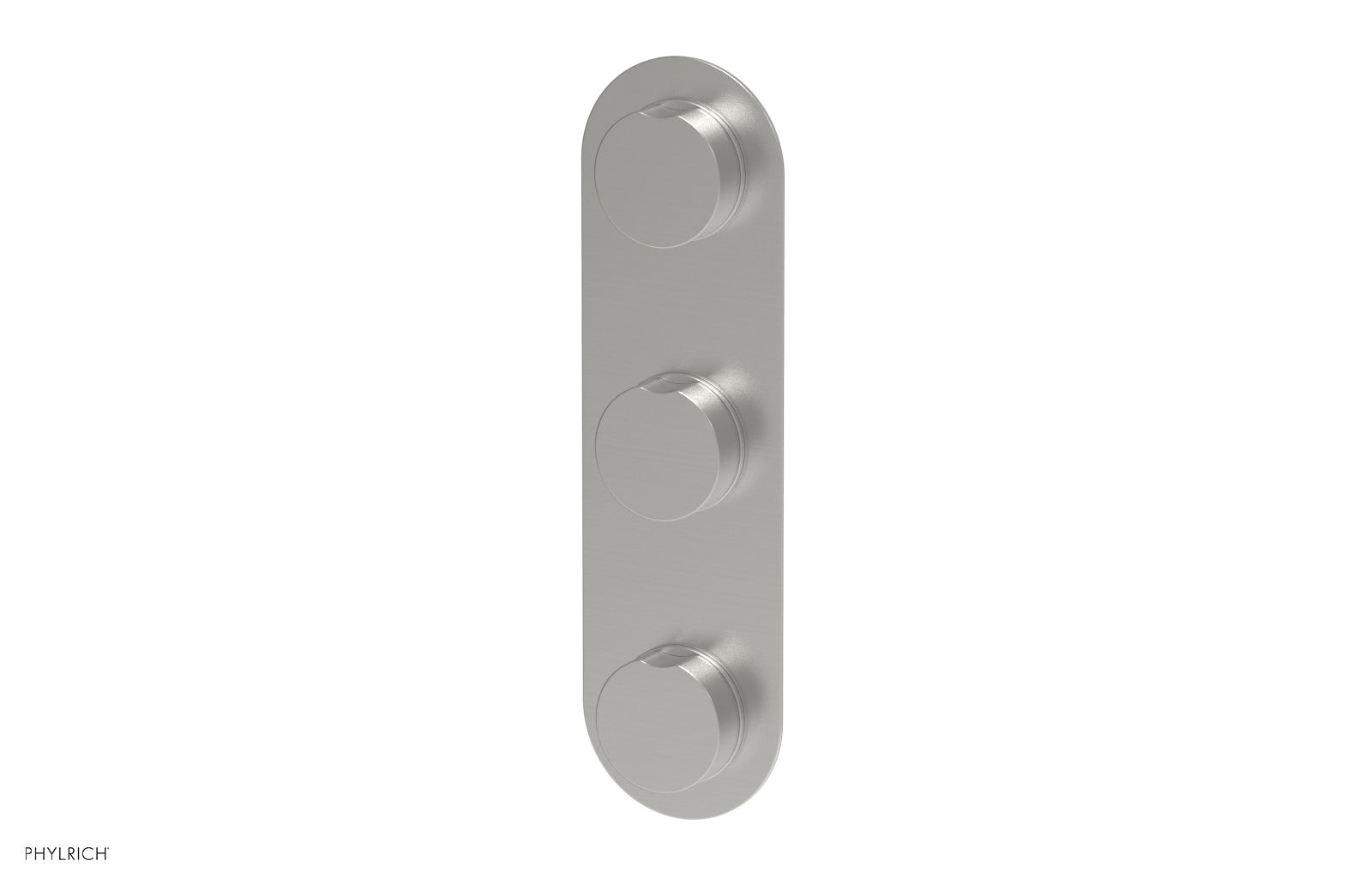

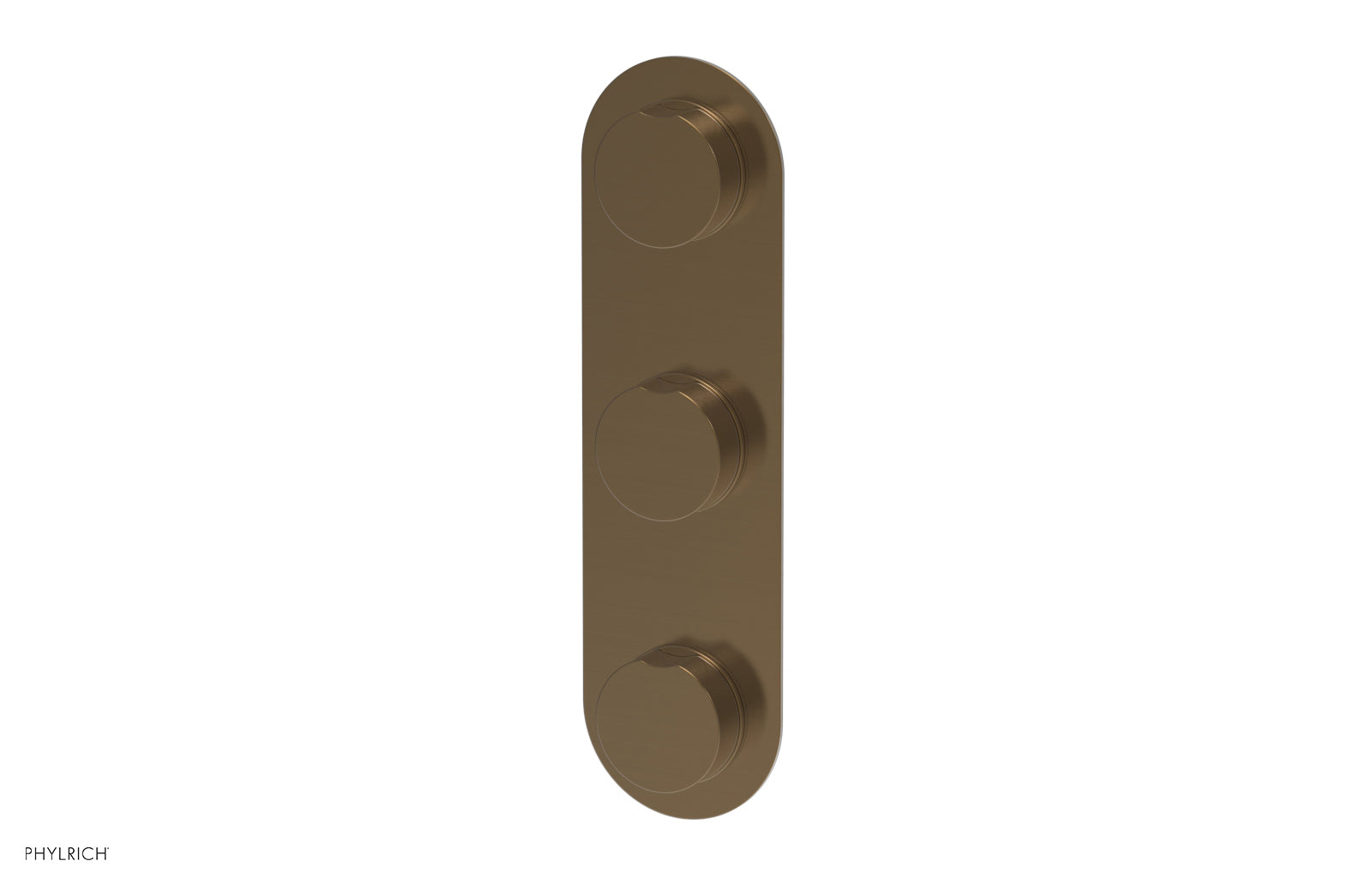

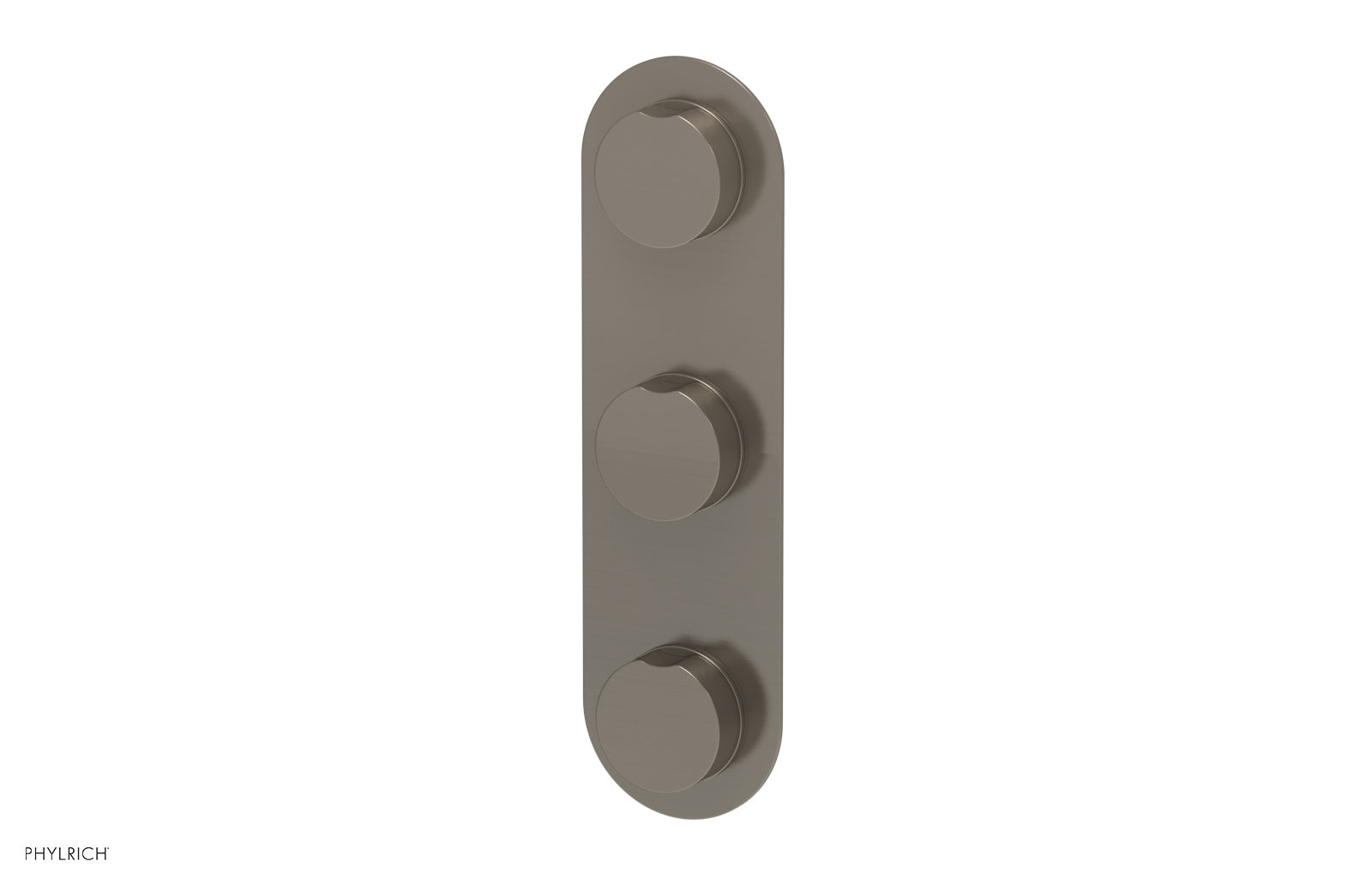

Product Features

Made in the U.S.A.

Style: Transitional
Collection: Circ
Temperature Controlled By Thermostatic
Round Handles
Required Valve:
FOR 1/2" Valve

1-138 1/2" Valve w/ Two Volume Control

FOR 3/4" Valve:

1-148 3/4" Valve w/ Two Volume Control

Low lead compliant – complies with federal and state regulations for lead content

WARNING For California Residents - Prop 65

Technical Details

ADA Compliance: No
Access Hole: 3 x 13"
Number of Handles: Three
Handle Spread: 5"
Top Handle Turn Angle: Quarter Turn
Bottom Handle Turn Angle: 115-118¡
Installation Type: Wall Mounted
Primary Material: Brass
Valve Material: Ceramic
Flow Rate: 6.5 GPM
Flow Restriction: 1.8 GPM per function
Water Pressure Maximum: 85 PSI
Water Pressure Minimum: 20 PSI
Water Pressure Recommended: 60 PSI

Codes & Standards

ASME A112.181/ CSA B1251, ASME 112.18.2/ CSA B125.2, ANSI NSF, CEC,
Watersense 61 Sect. 9, State of MA.

Warranty

Mechanical Warranty: 10 Years from date of purchase.
Finish Warranty: See Warranty information page for further information.
