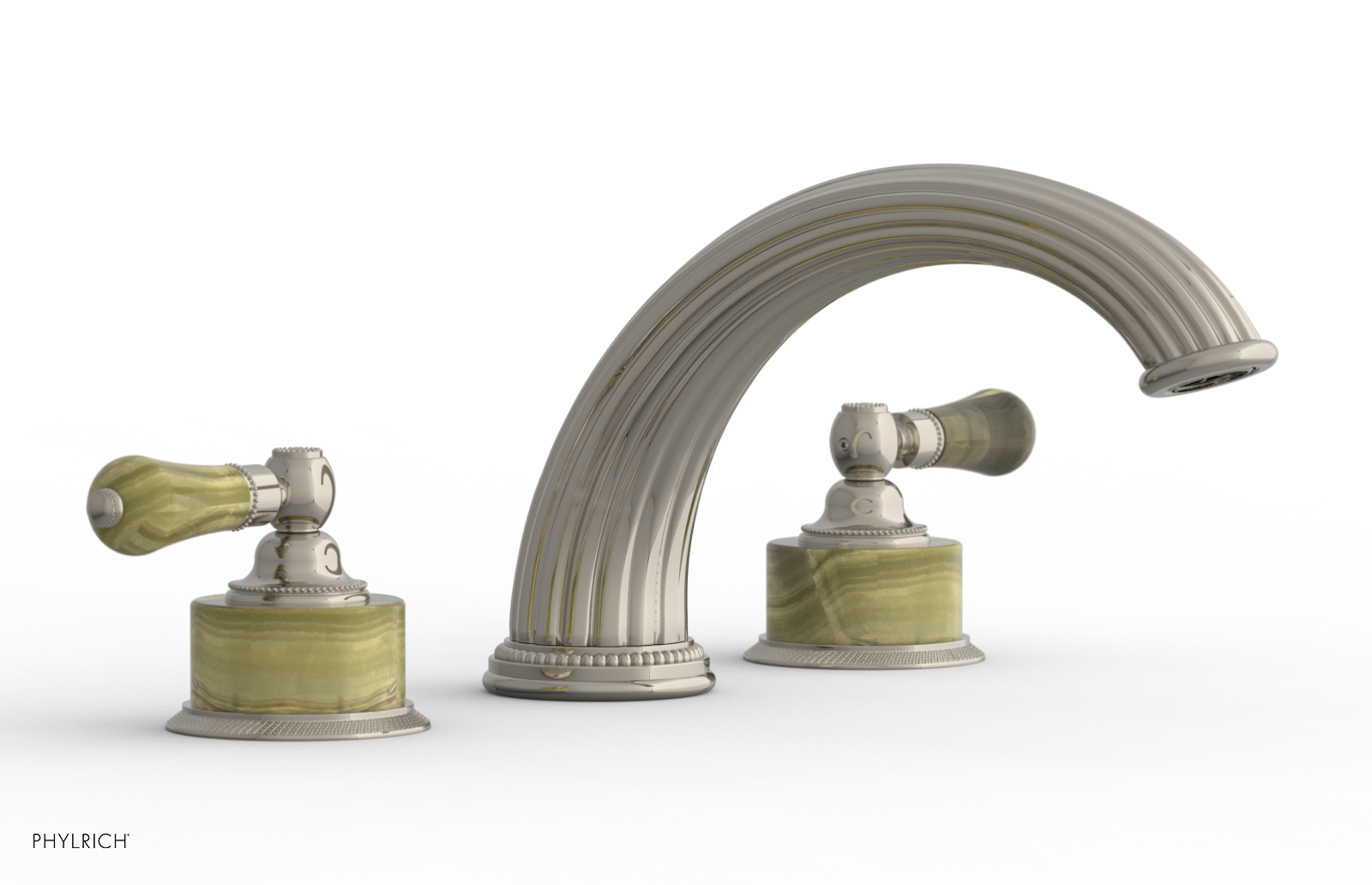

Product Features

Made in the U.S.A.

Style: Traditional
Collection: Regent
Temperature Controlled By Handles
Lever Handles
Green Onyx

Low lead compliant – complies with federal and state regulations for lead content

WARNING For California Residents - Prop 65

Technical Details

ADA Compliance: Yes
Deck Thickness Maximum: 2”
Deck Thickness Minimum: 1/8”
Fitting Hole Diameter: 1 1/8“
Number of Holes: Three Hole
Number of Handles: Two
Handle Spread Maximum: 12”
Handle Spread Minimum: 8”
Handle Turn Angle: Quarter Turn
Spout Reach: 9 5/8”
Spout Height: 7 1/8“
Inlet Connection Type: Male 3/4” NPT
Installation Type: Deck Mounted
Primary Material: Brass
Valve Material: Ceramic
Flow Restriction: Full Flow
Water Pressure Maximum: 85 PSI
Water Pressure Minimum: 20 PSI
Water Pressure Recommended: 60 PSI

Codes & Standards

ASME A112.181/ CSA B1251, ASME 112.18.2/ CSA B125.2, ANSI NSF, CEC,
Watersense 61 Sect. 9, State of MA.

Warranty

Mechanical Warranty: 10 Years from date of purchase.
Finish Warranty: See Warranty information page for further information.
